ZB4BS84430 - Square D - 40mm 22mm Red Mushroom Emergency Stop Head Metal Switching Off Trigger Latching Turn To Release Marked EMO

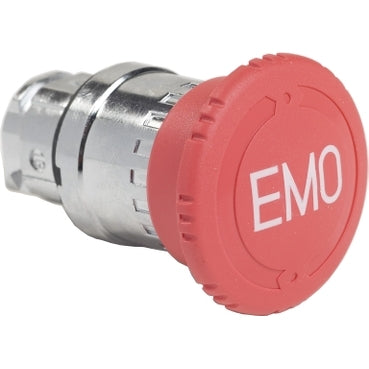

This head for emergency stop push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 40 mm, marked EMO (white). It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It operates with with trigger action and mechanical latching. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It weighs 73g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony XB4 |
| Product or Component Type |
Head for emergency switching off push-button |
| Device short name |
ZB4 |
| Bezel material |
Chromium plated metal |
| Mounting diameter |
0.9 in (22.5 mm) |
| Sale per indivisible quantity |
1 |
| Shape of signaling unit head |
Round |
| Type of operator |
trigger action and mechanical latching |
| Reset |
Turn to release |
| Operator profile |
Red mushroom Ø 40 mm, EMO |
| Head type |
Standard |
Complementary
| CAD overall width |
1.6 in (40 mm) |
| CAD overall height |
1.6 in (40 mm) |
| CAD overall depth |
2.2 in (57 mm) |
| Product Weight |
0.161 lb(US) (0.073 kg) |
| Mechanical durability |
300000 cycles |
| Electrical composition code |
C7 4 single front mounting
C8 4 single and double front mounting
C11 3 single front mounting
C15 1 single front mounting
C10 4 single and double front mounting |
Environment
| Protective treatment |
TH |
| Ambient Air Temperature for Storage |
-40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation |
-40…158 °F (-40…70 °C) |
| Electrical shock protection class |
Class I conforming to IEC 61140 |
| IP degree of protection |
IP66 IEC 60529
IP69
IP69K |
| Enclosure Type |
UL type 4X/13 |
| IK degree of protection |
IK06 conforming to IEC 50102 |
| Standards |
JIS C8201-5-1
CSA C22.2 No 14
IEC 60947-5-1
GB 14048.5
UL 508
IEC 60947-1
IEC 60364-5-53
IEC 60947-5-4
IEC 60204-1
IEC 60947-5-5
ISO 13850
JIS C8201-1 |
| Product Certifications |
DNV
UL Listed
LROS (Lloyds register of shipping)
BV
CSA |
| Vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Ordering and shipping details
| Category |
US10CS222468 |
| Discount Schedule |
0CS2 |
| GTIN |
3606480502842 |
| Returnability |
Yes |
| Country of origin |
CZ |
Packing Units
| Unit Type of Package 1 |
PCE |
| Nbr. of units in pkg. |
1 |
| Package 1 Height |
1.732 in (4.400 cm) |
| Package 1 Width |
2.047 in (5.200 cm) |
| Package 1 Length |
3.386 in (8.600 cm) |
| Package weight(Lbs) |
2.646 oz (75.000 g) |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
42 |
| Package 2 Height |
5.906 in (15.000 cm) |
| Package 2 Width |
11.811 in (30.000 cm) |
| Package 2 Length |
15.748 in (40.000 cm) |
| Package 2 Weight |
7.661 lb(US) (3.475 kg) |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
672 |
| Package 3 Height |
29.528 in (75.000 cm) |
| Package 3 Width |
23.622 in (60.000 cm) |
| Package 3 Length |
31.496 in (80.000 cm) |
| Package 3 Weight |
150.347 lb(US) (68.196 kg) |
PRODUCT DATASHEET
ZB4BS84430
