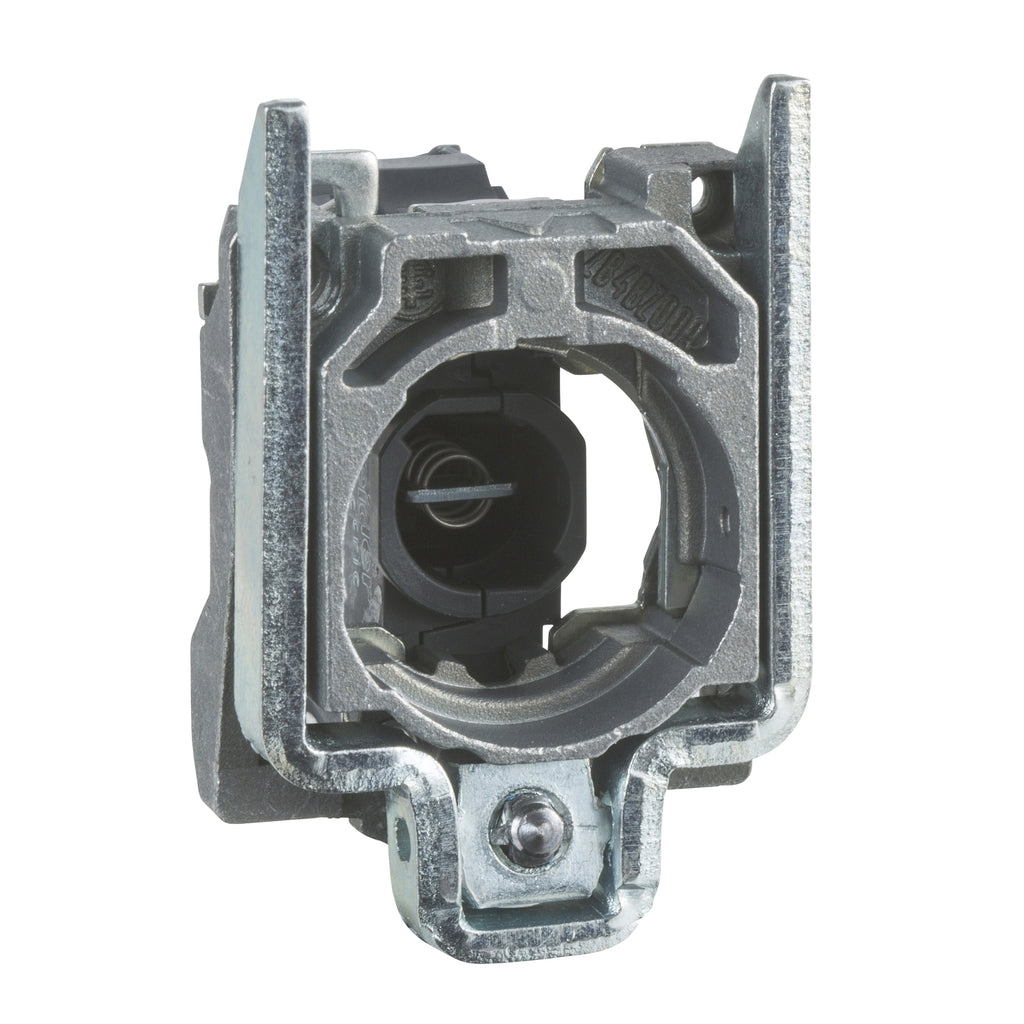

ZB4BV6 - Schneider Electric - Square D Pilot Light
This Harmony XB4, light block with body/fixing collar operates with BA9s bulb. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s bulb. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 55°C allows versatility in usage of product.
GENERAL SPECIFICATIONS
| Range of Product | Harmony XB4 |
|---|---|
| Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 |
| Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light source | Bulb not included |
| Bulb base | BA 9s |
| Light block supply | Direct <2.4 W |
| [Us] rated supply voltage | <= 250 V |
| CAD overall width | 1.2 in (30 mm) |
|---|---|
| CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.5 in (37 mm) |
| Terminals description ISO n°1 | (X1-X2)PL |
| Product Weight | 0.115 lb(US) (0.052 kg) |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Signalling type | Steady |
| Device presentation | Basic sub-assemblies |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| Standards | IEC 60947-5-5 IEC 60947-5-4 IEC 60947-1 IEC 60947-5-1 UL 508 CSA C22.2 No 14 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | DNV UL Listed LROS (Lloyds register of shipping) BV CSA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222469 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110889628 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.205 in (5.600 cm) |
| Package 1 Width | 1.339 in (3.400 cm) |
| Package 1 Length | 2.126 in (5.400 cm) |
| Package weight(Lbs) | 1.795 oz (50.900 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 1.772 in (4.500 cm) |
| Package 2 Width | 1.339 in (3.400 cm) |
| Package 2 Length | 10.433 in (26.500 cm) |
| Package 2 Weight | 9.101 oz (258.000 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 11.811 in (30.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 35.146 lb(US) (15.942 kg) |
