Description

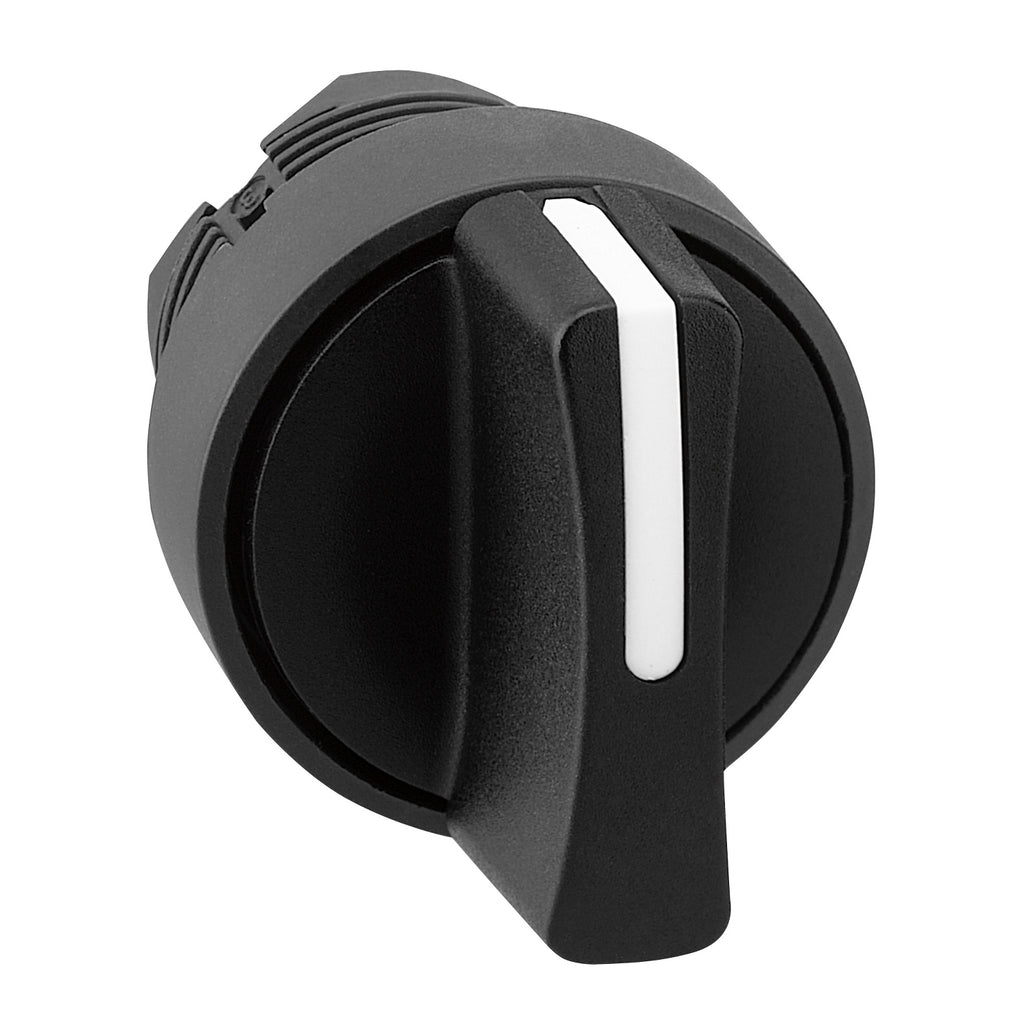

ZB5AD5 - Schneider Electric - Square D Harmony XB5 3-Position Spring Return Selector Switch Head
This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
GENERAL SPECIFICATIONS
| Range of Product | Harmony XALF Harmony XB5 |
|---|---|
| Product or Component Type | Head for selector switch |
| Device short name | ZB5 |
| Bezel material | Dark grey plastic |
| Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Type of operator | To centre spring return |
| Operator profile | Black standard handle |
| Operator position information | 3 positions +/- 45° |
| CAD overall width | 1.1 in (29 mm) |
|---|---|
| CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.8 in (46 mm) |
| Product Weight | 0.037 lb(US) (0.017 kg) |
| Mechanical durability | 1000000 cycles |
| Station name | XALD 1...5 cut-outs XALK 2...5 cut-outs |
| Electrical composition code | C3 6 single front mounting C4 6 single and double front mounting C5 5 single front mounting C6 5 single and double front mounting C7 4 single front mounting C8 4 single and double front mounting C11 3 single front mounting SF1 3 single front mounting SR1 3 single rear mounting |
| Device presentation | Basic element |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP67 IEC 60529 IP69 IEC 60529 IP69K |
| Enclosure Type | UL type 4X/13 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | UL 508 IEC 60947-5-1 IEC 60947-1 CSA C22.2 No 14 IEC 60947-5-4 JIS C8201-5-1 JIS C8201-1 |
| Product Certifications | DNV CSA BV LROS (Lloyds register of shipping) UL Listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222467 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110905199 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.457 in (3.700 cm) |
| Package 1 Width | 2.126 in (5.400 cm) |
| Package 1 Length | 2.323 in (5.900 cm) |
| Package weight(Lbs) | 0.847 oz (24.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 11.685 lb(US) (5.300 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1600 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 23.622 in (60.000 cm) |
| Package 3 Length | 31.496 in (80.000 cm) |
| Package 3 Weight | 112.445 lb(US) (51.004 kg) |
PRODUCT DATASHEET
