ZBV014 - Schneider Electric - Square D Motor Control Part And Accessory

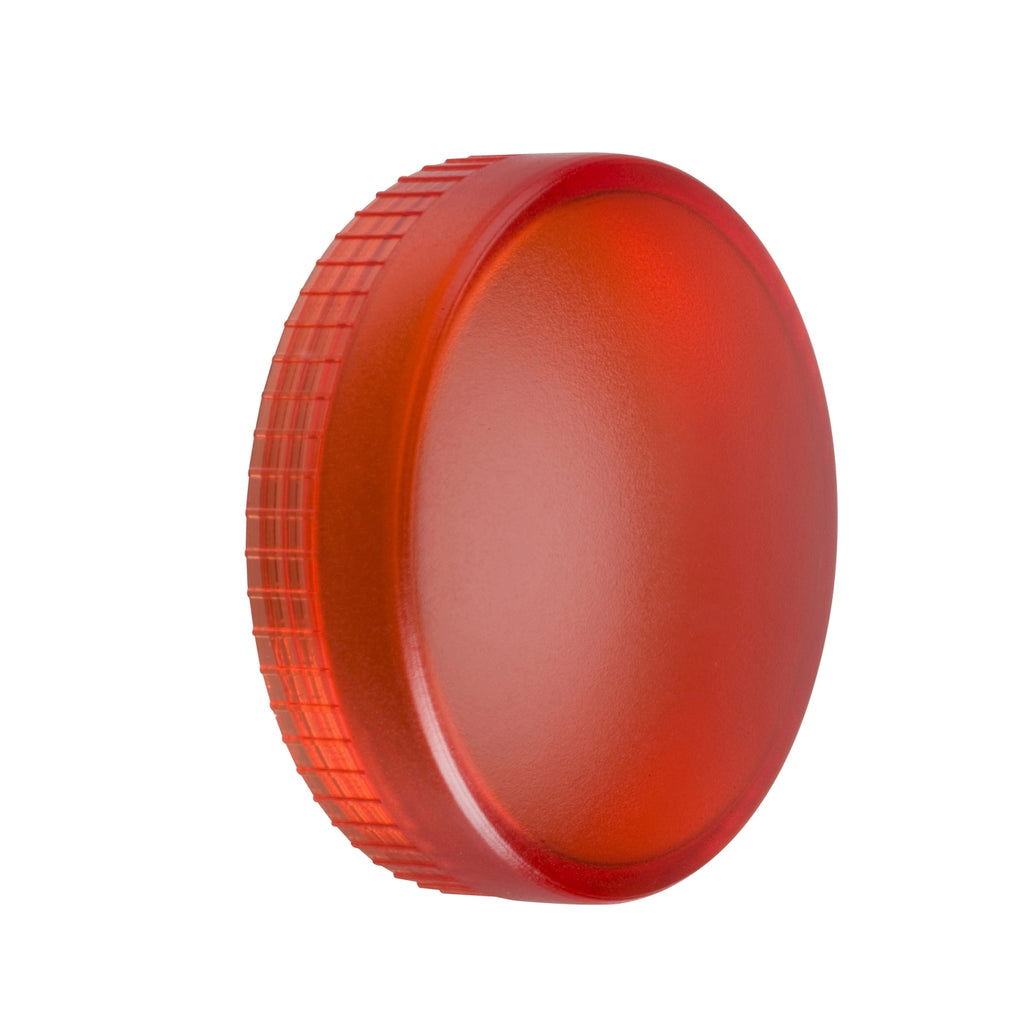

This Harmony ZB, red lens cap has a round shape. It is compatible with Harmony XB4 and XB5 pilot lights with BA9s base. This lens cap provides clear visual feedback on the status of your machines. It is easily installed and replaced on compatible pilot light with BA9s base. It is clearly distinguishable visually at a distance due to its clear color of lens, enabling complex machine statuses to be read at a glance. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
GENERAL SPECIFICATIONS
Main
| Range of Product |
Harmony XB5
Harmony XB4 |
| Accessory / separate part designation |
Lens cap |
| Accessory / Separate Part Type |
Cap |
| Product or Component Type |
Plain lens |
| Accessory / separate part category |
Lighting accessories |
| Product Compatibility |
BA 9s |
| Accessory / separate part destination |
Pilot light |
| Cap or lens type |
Plain lens |
| Cap/operator or lens colour |
Red |
| Shape of signaling unit head |
Round |
| Marking |
unmarked |
| Ambient air temperature for operation |
-40…158 °F (-40…70 °C) |
| Quantity per Set |
Set of 10 |
Complementary
| Net Weight |
0.004 lb(US) (0.002 kg) |
Ordering and shipping details
| Category |
US10CS222469 |
| Discount Schedule |
0CS2 |
| GTIN |
3389110099829 |
| Returnability |
Yes |
| Country of origin |
FR |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
4.72 in (12.000 cm) |
| Package 1 Width |
0.59 in (1.500 cm) |
| Package 1 Length |
0.98 in (2.500 cm) |
| Package 1 Weight |
0.071 oz (2.000 g) |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
4.72 in (12.000 cm) |
| Package 2 Width |
0.59 in (1.500 cm) |
| Package 2 Length |
3.94 in (10.000 cm) |
| Package 2 Weight |
0.882 oz (25.000 g) |
| Unit Type of Package 3 |
S02 |
| Number of Units in Package 3 |
400 |
| Package 3 Height |
5.91 in (15.000 cm) |
| Package 3 Width |
11.81 in (30.000 cm) |
| Package 3 Length |
15.75 in (40.000 cm) |
| Package 3 Weight |
2.919 lb(US) (1.324 kg) |
PRODUCT DATASHEET
ZBV014_Product Datasheet
