Description

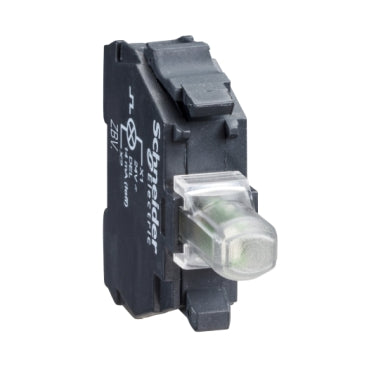

ZBVG5 - Square D - 110 120VAC Harmony XB4 Orange LED Light Block For 22mm Head
This Harmony ZB, orange light block operates with an integral LED. It is supplied with 110V to 120V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
GENERAL SPECIFICATIONS
| Range of Product | Harmony XB4 Harmony XB5 |
|---|---|
| Product or Component Type | Light block |
| Device short name | ZBV |
| Sale per indivisible quantity | 5 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1 |
| Signalling type | Steady |
| Light source | Protected LED |
| Bulb base | Integral LED |
| Light block supply | Direct |
| Light source colour | Orange |
| [Us] rated supply voltage | 110...120 V AC 50/60 Hz |
| Net Weight | 0.037 lb(US) (0.017 kg) |
|---|---|
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Current Consumption | 14 mA |
| Service life | 100000 h at rated voltage and 25 °C |
| Surge withstand | 1 kV IEC 61000-4-5 |
| Mounting of block | Front mounting |
| Electrical composition code | M1 M2 M3 M4 M5 M6 M10 MF1 P1 P2 PF1 |
| Device presentation | Basic element |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP20 IEC 60529 |
| Standards | EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 UL 508 JIS C8201-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
| Product Certifications | CSA UL Listed |
| Resistance to fast transients | 2 kV IEC 61000-4-4 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Electromagnetic emission | Class B IEC 55011 |
| [Us] rated supply voltage | 110...120 V |
| Category | US10CS222469 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110089882 |
| Returnability | No |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.7 in (4.4 cm) |
| Package 1 Width | 2.1 in (5.4 cm) |
| Package 1 Length | 2.2 in (5.6 cm) |
| Package weight(Lbs) | 0.4 oz (11.0 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 1.7 in (4.4 cm) |
| Package 2 Width | 2.1 in (5.4 cm) |
| Package 2 Length | 2.2 in (5.6 cm) |
| Package 2 Weight | 1.9 oz (55.0 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 11.8 in (30.0 cm) |
| Package 3 Width | 11.8 in (30.0 cm) |
| Package 3 Length | 15.7 in (40.0 cm) |
| Package 3 Weight | 20.860 lb(US) (9.462 kg) |
