Description

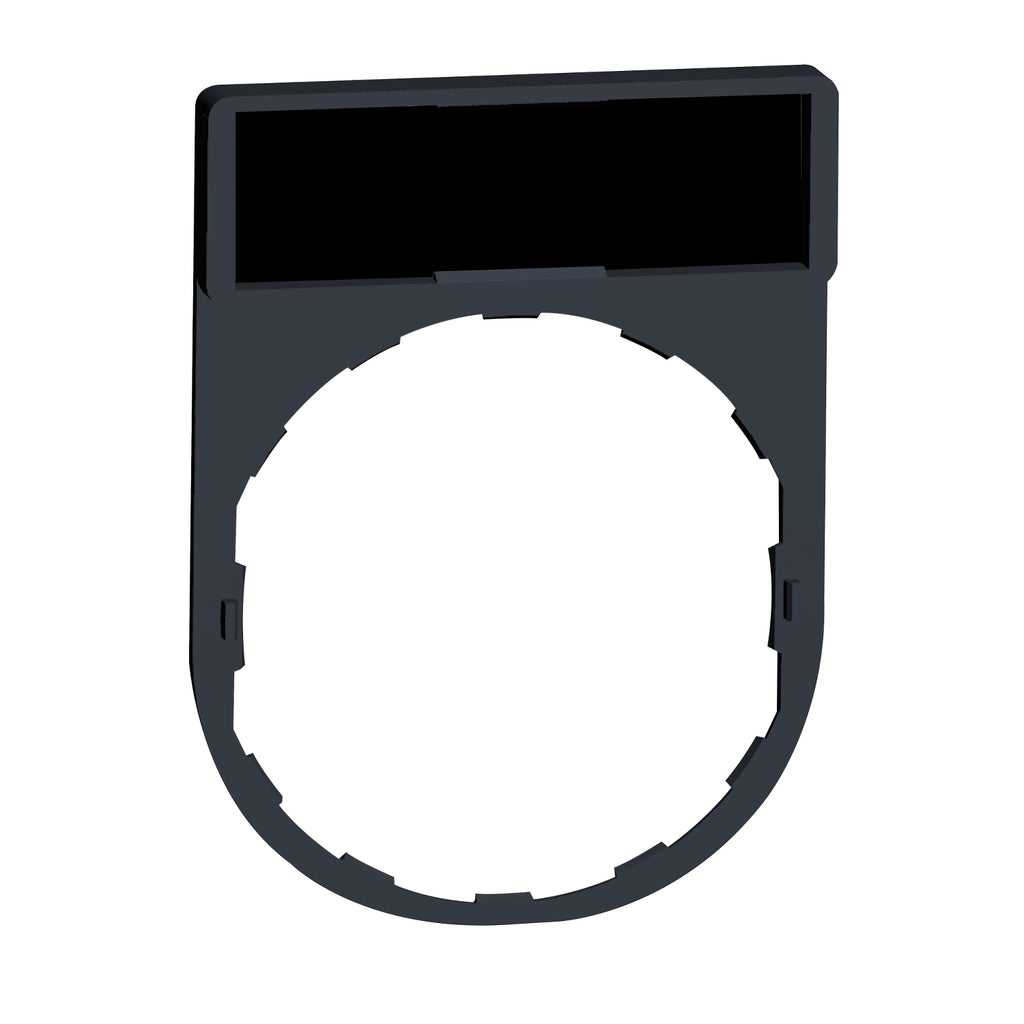

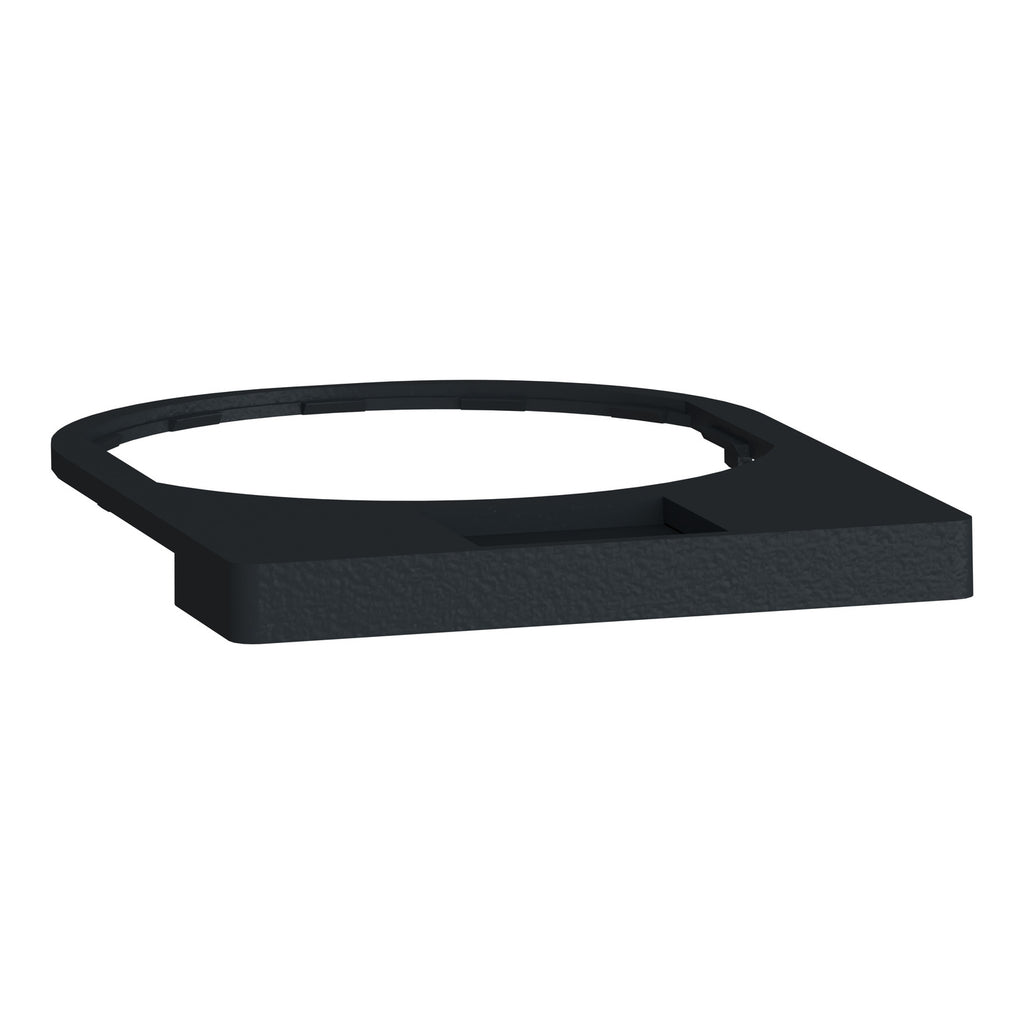

ZBY2101 - Schneider Electric - Square D Harmony Legend Holder
This Harmony legend holder has a black or red background. It is compatible with Harmony XB4, XB5 and XB7 push buttons and pilot lights. This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. It is compatible with any standard 22mm Harmony control or signalling unit. It provides clear and resilient symbol marking on the label, with high contrast.
GENERAL SPECIFICATIONS
| Product or Component Type | Legend holder |
|---|---|
| Accessory / separate part category | Marking accessory |
| Material | Plastic |
|---|---|
| Device Composition | Blank legend Legend holder |
| Accessory / separate part destination | Ø 22 mm control or signalling unit For standard head |
| Colour | Dark grey |
| Range Compatibility | Harmony XB5 Harmony XB4 |
| Legend holder size | 30 x 40 mm |
| Marking | unmarked 1 black side, 1 red side |
| Sale per indivisible quantity | 10 |
| Net Weight | 0.004 lb(US) (0.002 kg) |
| Category | US10CS222469 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110839968 |
| Returnability | Yes |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.118 in (0.300 cm) |
| Package 1 Width | 1.181 in (3.000 cm) |
| Package 1 Length | 1.575 in (4.000 cm) |
| Package weight(Lbs) | 0.032 oz (0.900 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 0.591 in (1.500 cm) |
| Package 2 Width | 2.756 in (7.000 cm) |
| Package 2 Length | 4.331 in (11.000 cm) |
| Package 2 Weight | 0.423 oz (12.000 g) |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 5.906 in (15.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 3.869 lb(US) (1.755 kg) |
PRODUCT DATASHEET
