Description

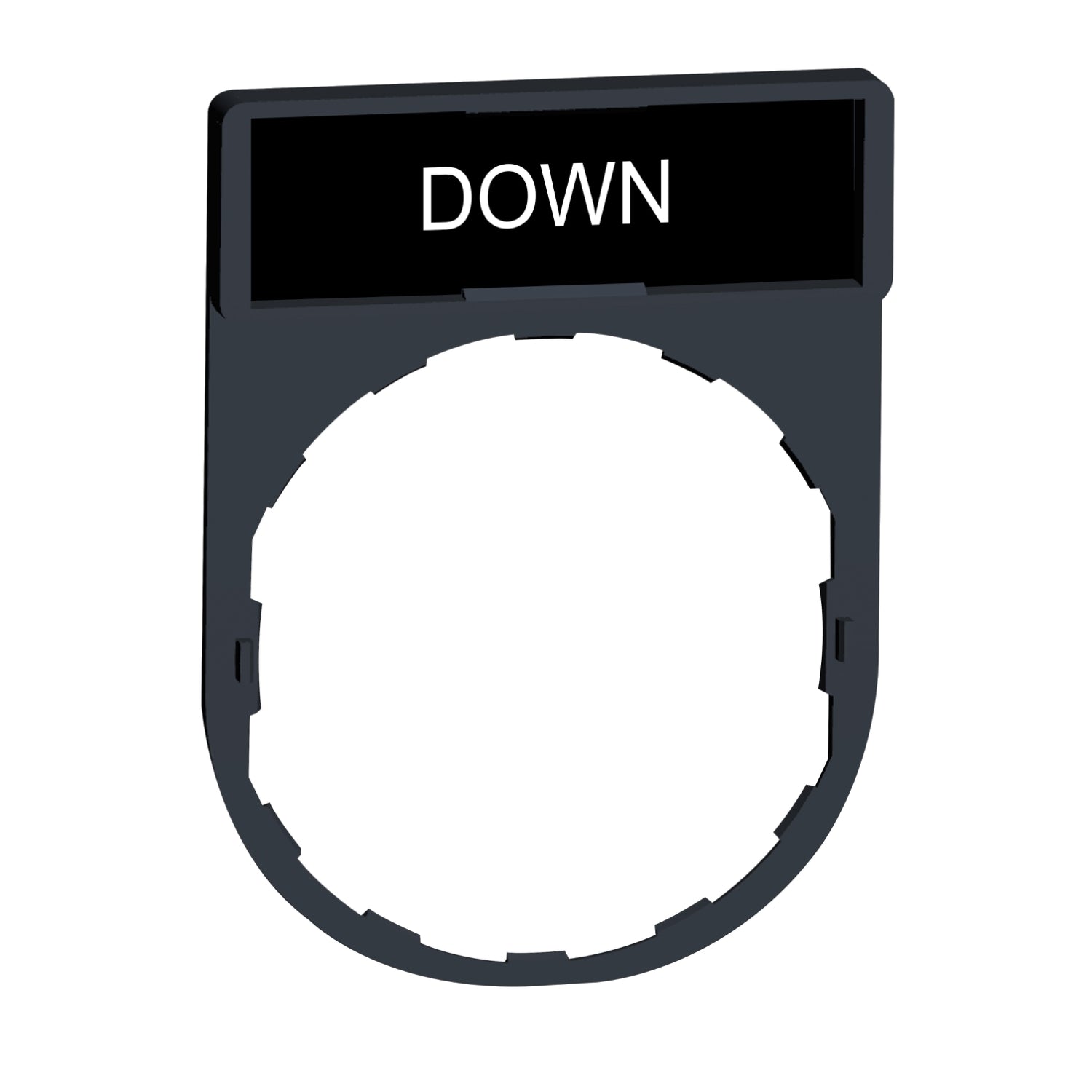

ZBY2308 - Schneider Electric - Square D Motor Control Part And Accessory
This Harmony ZBY legend holder has black or red background and is marked with "DOWN" lettering. It is compatible with Harmony XB4, XB5 and XB7 push buttons and pilot lights. This legend holder allows you to customize the control unit with an engraved tag, in line with the design approved by your customer. It is compatible with any standard 22mm Harmony control or signalling unit. It provides clear and resilient symbol marking on the label, with high contrast.
GENERAL SPECIFICATIONS
| Product or Component Type | Legend holder |
|---|---|
| Accessory / separate part category | Marking accessory |
| Material | Plastic |
|---|---|
| Device Composition | Legend holder Marked legend |
| Accessory / separate part destination | Ø 22 mm control or signalling unit For standard head |
| Range Compatibility | Harmony XB5 Harmony XB4 |
| Legend holder size | 30 x 40 mm |
| Marking | White down 1 black side, 1 red side |
| User Language | English |
| Product Weight | 0.004 lb(US) (0.002 kg) |
| Category | US10CS222469 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110839982 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.787 in (2.000 cm) |
| Package 1 Width | 1.181 in (3.000 cm) |
| Package 1 Length | 0.787 in (2.000 cm) |
| Package weight(Lbs) | 0.032 oz (0.900 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 0.787 in (2.000 cm) |
| Package 2 Width | 1.772 in (4.500 cm) |
| Package 2 Length | 2.756 in (7.000 cm) |
| Package 2 Weight | 0.388 oz (11.000 g) |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 300 |
| Package 3 Height | 5.906 in (15.000 cm) |
| Package 3 Width | 5.906 in (15.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 18.166 oz (515.000 g) |
